Torque
70 Nm
Payload
150 KG
Battery
600 Wh
Range
40-80 KM
Fat Tire
20 x 4.0''
Certification
CE
Jasion RetroVolt Ebike
Motorcycle-style Off-Road Electric Bike
Accessories
Jasion Urban Ebike Helmet
€89,00
Jasion Phone Mount Holder
€35,00
Jasion Ebike Mirrors
€45,00
Jasion Bicycle Combination Lock
€45,00
Jasion Bike Cover
€59,00
Jasion Front Basket
€89,00
| SIZE (cm) | One Size |
| A--Handlebar Length | 70 |
| B--Head Tube Length | 15 |
| C--Frame Stack | 53 |
| D--Minimun seat hight | 62 |
| E--Stand Over Height | 92 |
| F--Chain stay Length | 50 |
| G--Head angle | 73 |
| H--Wheel Diameter | 58 |
| I--Handlebar Height | 110 |
| J--Wheelbase | 108 |
| K--Total Length | 170 |
| Rider Height | 160-190 |
| Motor | 500W Brushless Hub Motor |
| Torque | 70 Nm |
| Sensor | Cadence Sensor |
| Brake | Mechanical Disc Brake |
| Drivetrain | Shimano 7-speed |
| Frame | High Carbon Steel |
| Tires | 20 x 4.0'' Fat Tire |
| Battery | 48V12.5AH Lithium Battery |
| Fork | Suspension Front Fork |
| Display | LCD Display |
| Mode | PAS+Throttle |
| Top Speed | 45KM/H (PAS 5) |
| Range | 35 KM (Throttle Only), 80KM (PAS 1) |
| Charging Time | 5-6 Hours |
| Max Load | 150 KG |
Classic Style, Modern Power
Your best adventure partner
Features

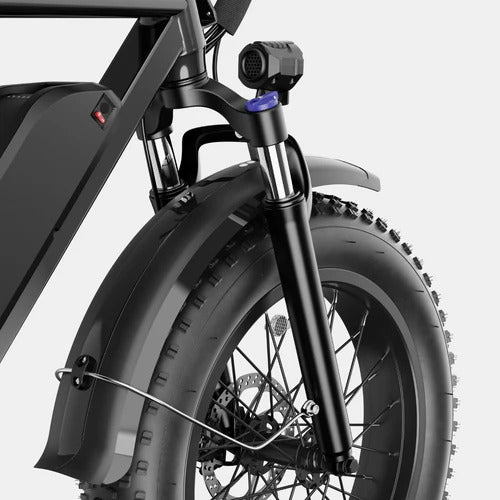

Full Suspension
Provides powerful, efficient performance for smooth rides and climbs.

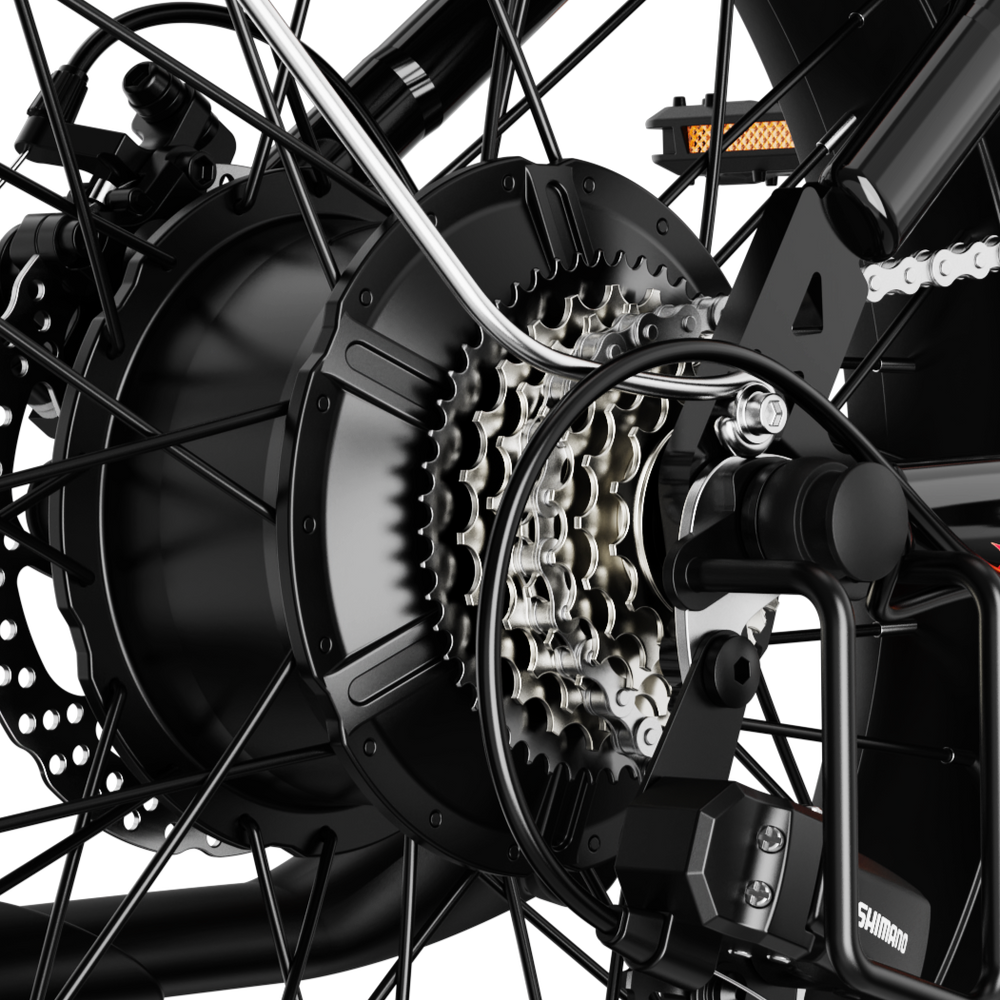

500W Brushless Motor
Provides powerful, efficient performance for smooth rides and climbs.

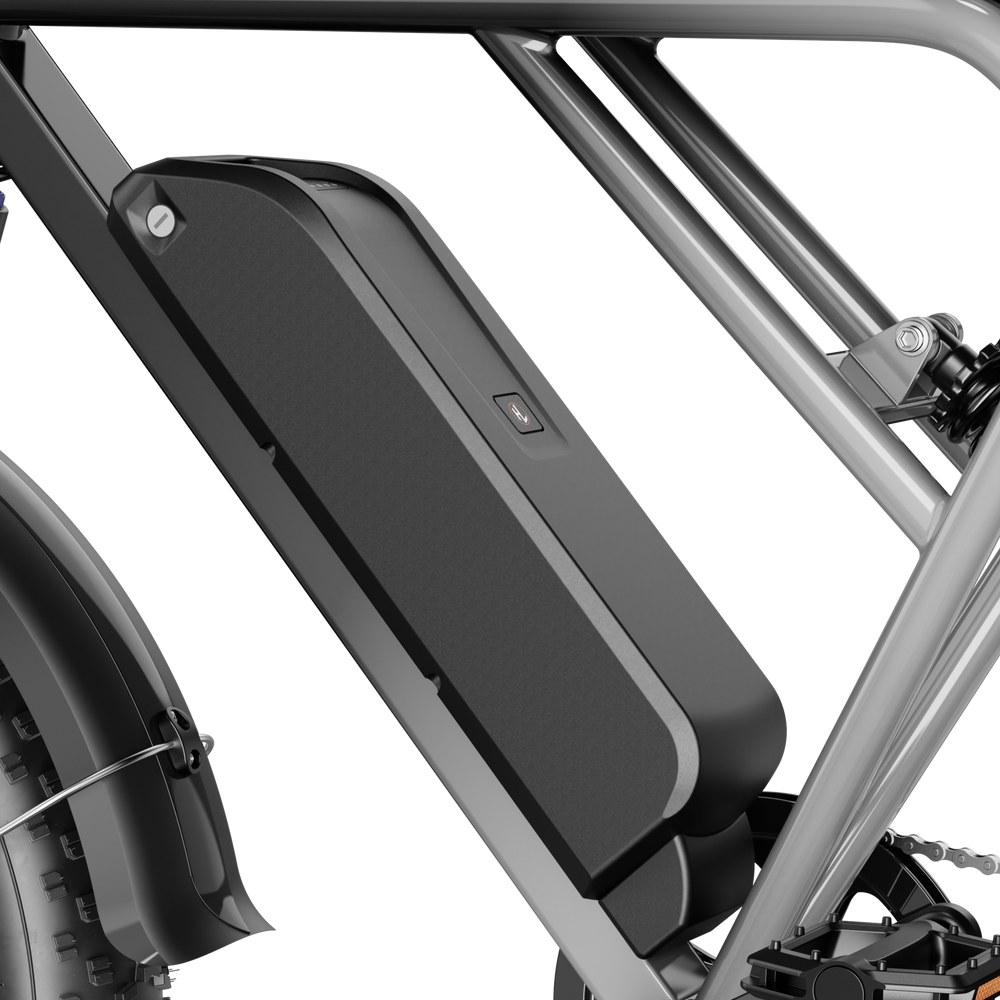

600Wh Removable Battery
High-capacity battery delivers long-lasting power for extended cycling trips.

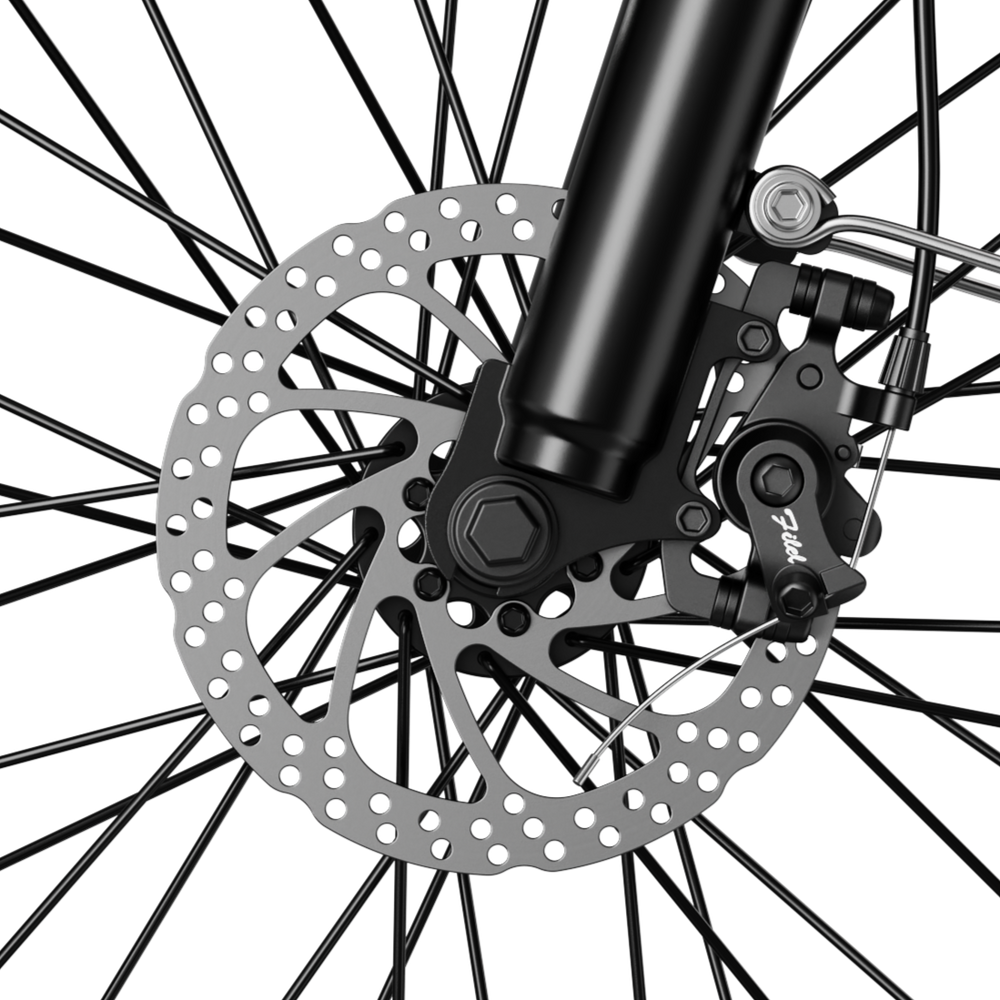

Mechanical Disc Brakes
Reliable mechanical disc brakes deliver precise stopping power for safe, controlled rides.

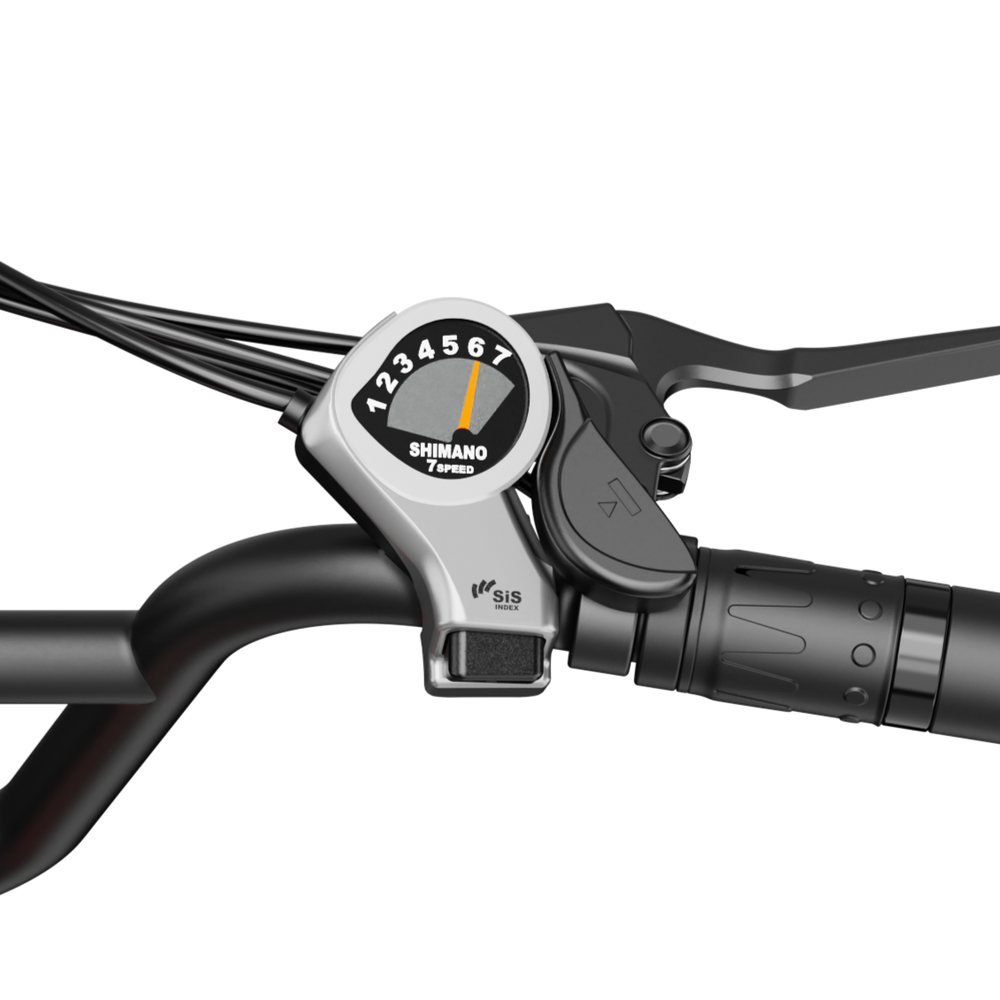

Shimano 7-speed
Shimano 7-speed rear derailleur and shift lever. Precise drivetrain ensures smooth gear changes while riding.

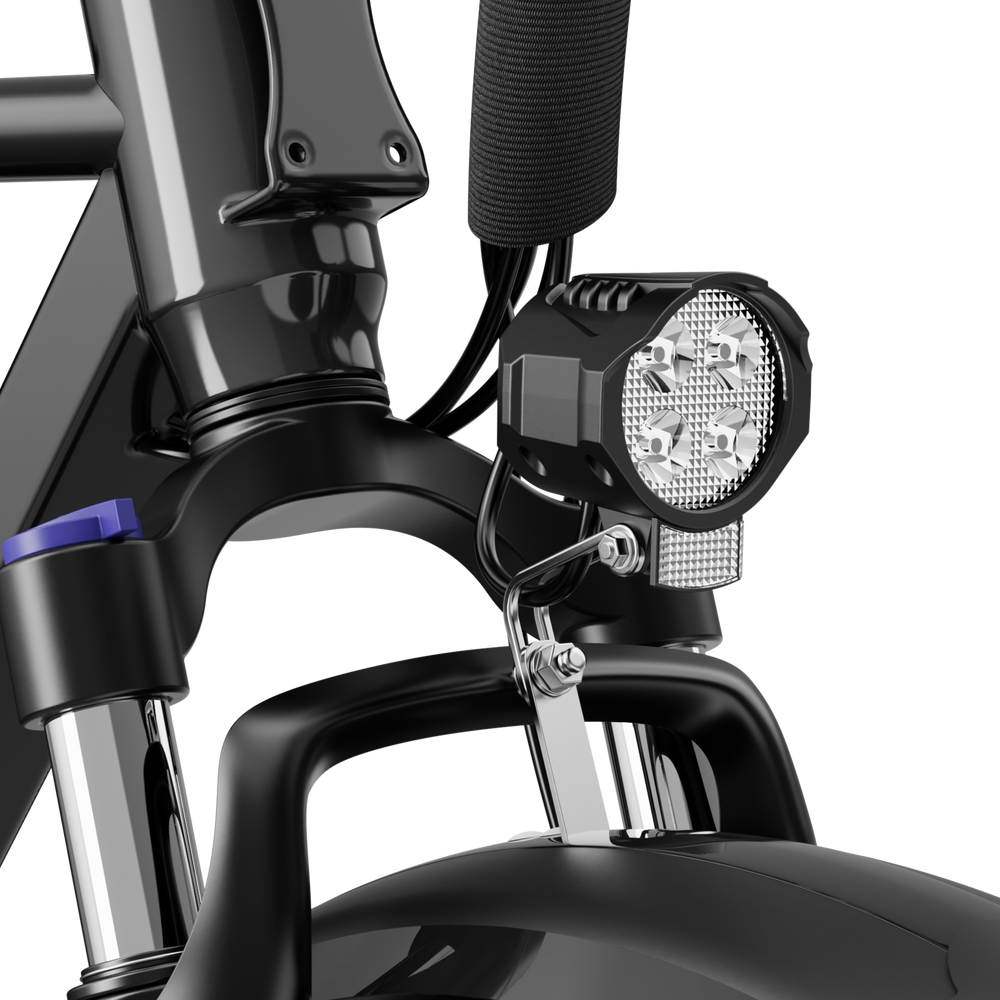

LED Headlight
Bright LED headlight for enhanced visibility and safe night riding on your E-Bike.
Specs & Geometry
SIZE (cm)
One Size
A Handlebar Length
70
B Head Tube Length
15
C Frame Stack
53
D Minimun seat hight
62
E Stand Over Height
92
F Chain stay Length
50
G Head angle
73
H Wheel Diameter
58
I Handlebar Height
110
J Wheelbase
108
K Total Length
170
Rider Height
160-190
Motor
500W Brushless Motor
Torque
70 Nm
Battery
48V12.5AH Lithium Battery
Charging Time
5-6 Hours
Fork
Suspension Front Fork
Frame
High Carbon Steel
Tires
20 x 4.0'' Fat Tire
Brake
Mechanical Disc Brake
Rotors
180 mm Front & Rear
Drivetrain
Shimano 7-speed
Net Weight
37 KG
Payload
150 KG
RetroVolt*1
Fender*2
Charger*1
Toolkit*1
Pedal*2
Kickstand*1
User Manual*1
FAQ
1. What is the top speed of the Jasion RetroVolt?
The Jasion RetroVolt has a top speed of 45 km/h, making it ideal for both urban commuting and off-road adventures.
2. How powerful is the motor on the Jasion RetroVolt?
The Jasion RetroVolt is equipped with a 500W motor that provides 70Nm of torque, delivering strong acceleration and performance for various terrains. The motor can also reach a peak power of 750W for enhanced performance when needed.
3. What is the battery capacity of the Jasion RetroVolt?
The Jasion RetroVolt features a 48V 12.5Ah battery, offering a maximum range of up to 80 km (50 miles) on a single charge, depending on riding conditions.
4. What is the suitable rider height for the Jasion RetroVolt?
The Jasion RetroVolt is suitable for riders with a height range of 160 cm to 190 cm (5'3" to 6'3").
5. Is the Jasion RetroVolt suitable for off-road riding?
Yes, the Jasion RetroVolt is designed as an all-terrain fat tire e-bike, providing excellent stability and traction for both city roads and rough trails. It features large 20" x 4" fat tires, ensuring better grip and shock absorption on various terrains.
